butano-ldtk

Prerequisites

• Butano: 20.0.0 or later
• LDtk: exactly 1.5.3
• Python: 3.10 or later

Setup

1. Clone (or download) this repo to your desired location. git clone https://github.com/copyrat90/butano-ldtk.git

2. Install Python dependencies (Pillow).

   cd /path/to/butano-ldtk
   pip install -r requirements.txt

3. Edit the Makefile of your own project.

   1. Add BUILDLDTK and LIBBUTANOLDTK right below the LIBBUTANO.

      BUILD        :=  build
      LIBBUTANO    :=  /path/to/butano/butano
      + BUILDLDTK      :=  build_ldtk
      + LIBBUTANOLDTK  :=  /path/to/butano-ldtk

   2. Add butano-ldtk folders (including will-be-generated ones) to your SOURCES, INCLUDES and GRAPHICS.

      - SOURCES        :=  src
      - INCLUDES       :=  include
      + SOURCES        :=  src $(LIBBUTANOLDTK)/src $(BUILDLDTK)/src
      + INCLUDES       :=  include $(LIBBUTANOLDTK)/include $(BUILDLDTK)/include
      DATA         :=
      - GRAPHICS       :=  graphics
      + GRAPHICS       :=  graphics $(BUILDLDTK)/graphics

   3. Add python script execution to convert your *.ldtk project file.

      - EXTTOOL        :=
      + EXTTOOL        :=  @$(PYTHON) -B $(LIBBUTANOLDTK)/tools/butano_ldtk.py --input=/path/to/your_project.ldtk --build=$(BUILDLDTK)

      • This will convert your_project.ldtk to every time you run make -j$(nproc).

   4. Add $(BUILDLDTK) to USERBUILD

      - USERBUILD      :=
      + USERBUILD      :=  $(BUILDLDTK)

   • If not sure, you can take a look at any of the examples' Makefile.
4. Run make -j$(nproc) to see if your project builds.

Basic usage

You can create a level as GBA backgrounds with this:

// DO NOT use angular brackets <> for butano-ldtk headers!
#include "ldtk_core.h"
#include "ldtk_level.h"
#include "ldtk_project.h"

#include "ldtk_level_bgs_ptr.h"

// These are all the generated header files you might want to include
#include "ldtk_gen_project.h"
#include "ldtk_gen_enums.h"
#include "ldtk_gen_idents.h"
#include "ldtk_gen_iids.h"
#include "ldtk_gen_tags.h"

#include <bn_core.h>

int main()
{
    bn::core::init();
    // Initializes butano-ldtk, this should be after `bn::core::init();`
    ldtk::core::init();

    // Locate the constexpr `gen_project` instance.
    //
    // This corresponds to the "root" of LDtk JSON.
    // With its member functions, you can access most of datas.
    constexpr const ldtk::project& gen_project = ldtk::gen::gen_project;

    // Get the level with its identifier.
    // (Assuming your project has a level named "level_0")
    constexpr const ldtk::level& level_0 = gen_project.get_level(ldtk::gen::level_ident::level_0);

    // Create a `ldtk::level_bgs_ptr` with the level.
    //
    // Internally, each layer with visible tiles would create one `bn::regular_bg_ptr`
    ldtk::level_bgs_ptr level_0_bgs = level_0.create_bgs();

    while (true)
        bn::core::update();
}

Build examples

You might want to take a look at examples/ directory for more sophisticated examples than above.

To build those examples, you need to do either:

• Put the butano-ldtk/ library folder alongside butano/ library folder.
• Edit each Makefile of the examples, so that LIBBUTANO := correctly points to butano/ library folder.

Going further

You can read the API documentation to figure out the API that's not covered in the examples.

If you have questions, you can go to the GitHub Discussions or find me in the gbadev Discord server.

Limitations

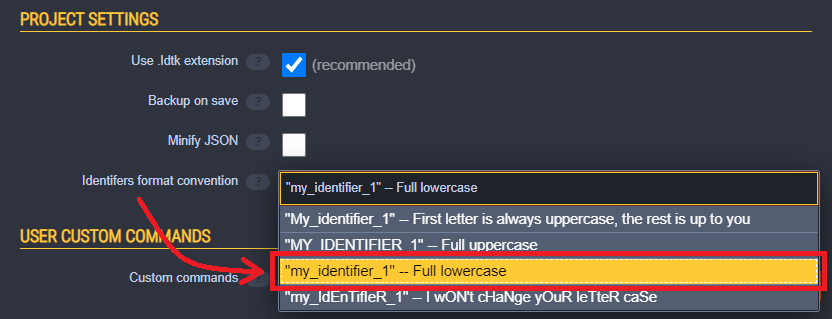

• butano-ldtk requires your LDtk project to use Full lowercase identifier convention.
  You can set it on your project settings.

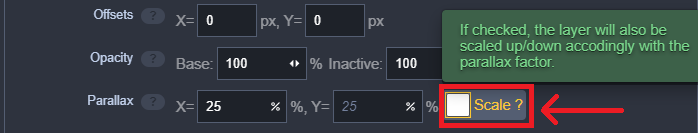

• Parallax scaling of layers is not supported.

  • If you set a parallax value, you need to uncheck the [ ] Scale ? box.



• Importing external enum files is not supported.
• Some field types are not supported:
  • File path
  • Tile
• Tile size that's not multiple of 8px is not supported.
  • This is because GBA hardware tiles are 8×8.
• Tiles not aligned to the grid are not supported.
• Tile stacking in the same layer is not supported.
  • If you have 2 or more tiles stacked in the same layer, tiles other than the top one is discarded.
    This might result in visual artifacts.
• Different layer opacity values are not supported.
  • This is because GBA only supports one global BG transparency alpha.
• If you have more than 4 layers with visible tiles, the converter will error out.
  • This is because GBA only supports 4 regular BGs visible.
  • You can have many layers without a visible tile, that won't create regular BG.
• Metadatas associated with LDtk Enums are not imported.
  • This is because enums are directly converted to C++ enums.
• Unused tiles in the tilesets are not imported.

Caveats

• LDtk 1.5.3 has a bug that when you update the definitions of layers, entities, etc, it is not propagated properly to all the instances.
  When this happens, unexpected results might happen.
  • To avoid this, when you make any changes to the definitions, do this:
    1. Change the identifier convention to Full uppercase temporarily.
    2. Save the project.
    3. Change it back to Full lowercase
    4. Save the project again.
• Identifiers, IIDs, tags are converted as enum values.
  • The identifiers of those enum values are mostly same as LDtk's, but there are exceptions:

    • Level fields & entity fields are converted like this:

      ldtk::gen::level_field_ident::LEVEL_level_name_FIELD_field_name
      ldtk::gen::entity_field_ident::ENTITY_entity_name_FIELD_field_name

    • Layer int grid values & int grid value groups are converted like this:

      ldtk::gen::layer_int_grid_value_ident::LAYER_layer_name_INT_GRID_VALUE_value_name
      ldtk::gen::layer_int_grid_value_group_ident::LAYER_layer_name_INT_GRID_VALUE_GROUP_group_name

    • IIDs are prefixed with single underscore _. Also, - is replace with _ too: cpp // 6abe6740-7820-11ed-b9f3-df5bd7818ec4 ldtk::gen::entity_iid::_6abe6740_7820_11ed_b9f3_df5bd7818ec4
• While the layer opacity value enables the blending of the BG of that layer,
  the global transparency alpha value itself is not touched.

  • This is because you might be controlling the transparency alpha value elsewhere.

  • To apply the transparency, you can simply do this:

    #include "ldtk_gen_project.h"
    #include <bn_blending.h>
    ...
    bn::blending::set_transparency_alpha(ldtk::gen::gen_project.opacity());

• ldtk::entity_ref is differ from the EntityReferenceInfos in the LDtk JSON specs
  • ldtk::entity_ref uses level & layer identifiers other than IIDs to turn the O(N) search cost into O(1) lookup.
    • This means that you need to take both the level & layer identifiers to uniquely distinguish a layer instance of a level.

Others

• DO NOT access anything named with priv directly.
  • Those are private headers that might be changed in the future.
    So, always access members starting from ldtk::gen::gen_project member functions.

Source codes

API Documentation

API Documentation is generated via Doxygen, which is licensed under the GNU GPL v2.

m.css Doxygen C++ theme is licensed under the MIT license.

Assets

License files of the graphics used for examples can be found in each example folders. (examples/*/licenses/)

For now, all of them are CC0 1.0 Universal.
